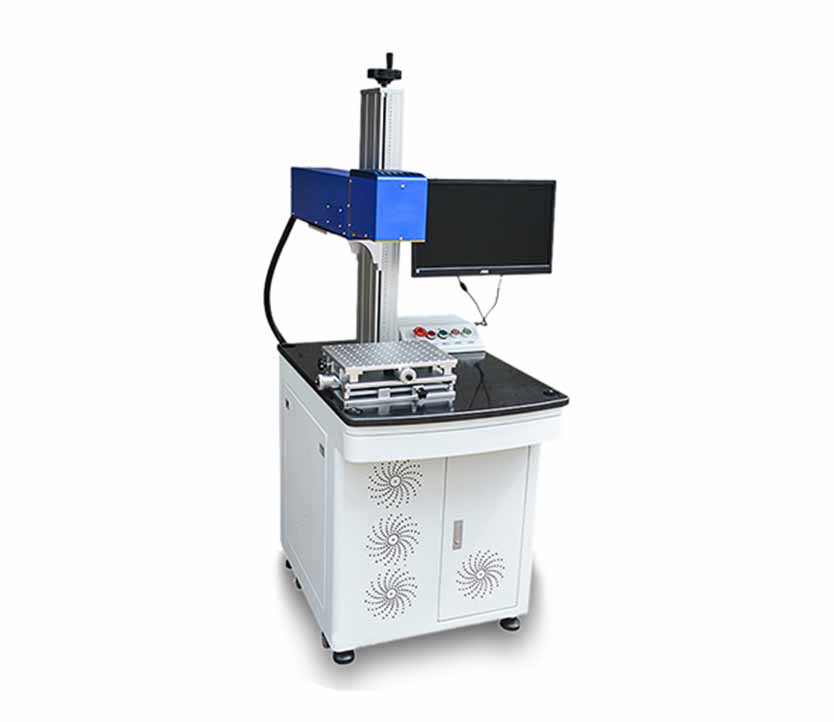

30W 50W 3D Metal Portable Optical Fiber Laser Marking Machine

1.High-precision three-dimensional positioning technology, high-speed focusing and scanning system, laser beam fundamental mode, short pulse, high peak power, high repetition rate, bring ideal marking effect to customers.

2.3D graphics processing technology, friendly operation interface, suitable for dxf, plt, cnc, step, IGES and other format files;

3.High photoelectric conversion rate, long service life and easy maintenance.

4.The marking speed is fast and the processing efficiency is greatly improved.


Share
  • product details
  • video
Features:

Product Hightlights

3D fiberlaser marking machine 1.High-precision three-dimensional positioning technology, high-speed focusing and scanning system, laser beam fundamental mode, short pulse, high peak power, high repetition rate, bring ideal marking effect to customers. 2.3D graphics processing technology, friendly operation interface, suitable for dxf, plt, cnc, step, IGES and other format files; 3.High photoelectric conversion rate, long service life and easy maintenance. 4.The marking speed is fast and the processing efficiency is greatly improved.

Specifications

Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Application:Laser Marking

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification: CE, ISO, SGS, FDA

Warranty:2years

Laser Source:Raycus

Marking Area: 50-300mm

Laser Wavelength:1064nm

Marking Speed:10000mm/s

Marking Depth:<=5mm

Applicable Material:Metal and some non-metal

Power Supply:220V/50HZ/1-PH or 110v/60HZ/1PH

Laser Repetition Frequency:20-100KHZ

Field Lens:Singapore Wavelength

Supply Ability

500 Set/Sets per Month

Packaging & Delivery

There are 3 layers of package: waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case. Cheap Price Laser Marker 30W 50W 3D Metal Portable Optical Fiber Laser Marking Machine Price For Metal

Port

Wuhan port or any other China ports

Lead Time :

Quantity(Sets) 1-3  4-5         >5

Est. Time(days) 5  8  To be negotiated



laser

Item no.

OV LM-30/50/100

output power

30W/50W/100W

pulse energy

1mj

repetitive frequency

30K-500KHZ

Laser wavelength

1064nm

Technology

Indicator laser

Red light 655 nm/output 1.0 mW

Marking area

Standard

optional

110*110mm

175*175mm/300*300mm

600*600mm/800*800mm

Adjustment depth range

±20cm

±20cm

Minimum line width

0.03mm

0.03mm

software

Marking speed

≤10000m/s

≤10000m/s

operating system

Windows XP/7/8/10

Font support

Ture type,AUTOCAD Single line font,custom

One dimensional barcode

CODE39/CODE128/ITF/CODABAR/EAN/UPC

Two dimensional barcode

QR/PDF417/Datamatrix(ECC200) ect.

File

PLT/DXF/DWG/SVG/STL/BMP/JPG/JPEG/PNG

Machine

Environmental requirements

Temperature: 10-35℃

Humidity: 5-75%

Input

110V/220V, 50-60Hz

Power waste

 ≤1500W

Cooling

air cooling/water cooling

Size

1400*850*1699mm(For reference)

Control interface

PCI-Express/USB-2.0 option

30W 50W 3D Metal Portable Optical Fiber Laser Marking Machine

30W 50W 3D Metal Portable Optical Fiber Laser Marking Machine
