What is Function of Galvo CO2 Laser Engraving Machine?

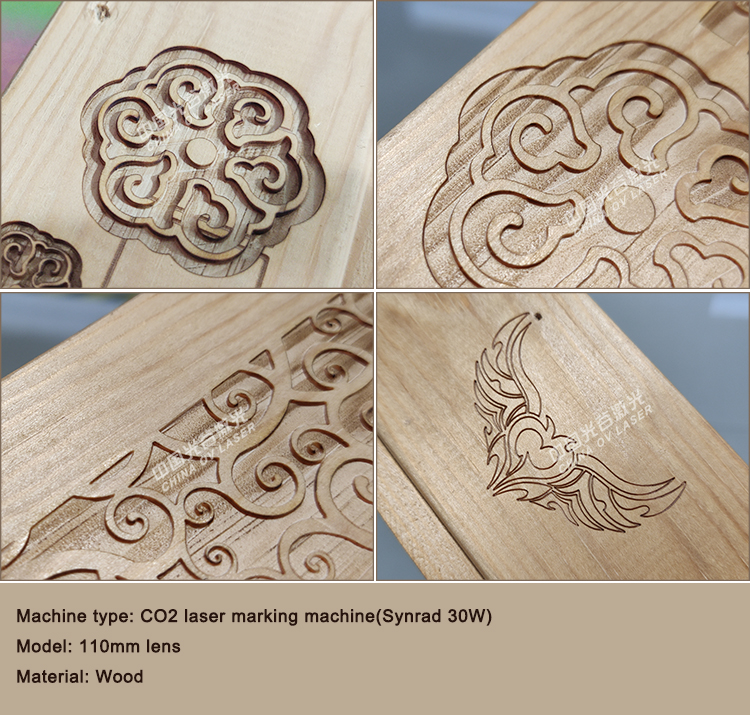

Galvo co2 laser marking/engraving machine with RF Metal tube source.It can work on most of non-metals, such as plastic,wood,acrylic,leather,rubber,silicon,powder coating metal mugs, painted glass, paper etc. Applicable in alcohol and tobacco packing,mainly mark security bar code symbol coding, widely used in ads and crafts, paper cards,hang tags,garment accessories,medicines and other packing industry,electronic components,wood carvings etc. Unlike traditional co2 machines that have backlash due to acceleration/deceleration of the gantry, the galvo co2 laser marking machine runs at a steady speed without any of the backlash. About 7 times higher speed than gantry co2 laser engraving machine.
CO2 Laser Marking Engraving Machine Specifications | |||
Products Name | CO2 Laser Marking Machine | Machine Types | Table Type |
Laser Source Brand | Coherent, Synrad, Davi | Laser Power | 20w 30w 35W 60w 100w |
Frequency Rate | 1KHZ to 25KHZ | ||
Laser Wavelength | 10.6um | Max Mar Speed | 7000mm/s |
Control Card | Original EZCAD from JCZ brand | Filed Lens Brans | Singapore /Nanjing wavelength |
2D Galvo Head | Sino Galvo SG 2206 | 3D Galvo Head | Feeltek,JCZ,Sino Galvo,OV Laser |
Field Lens Brand | Wavelength/ Ronard Smith | Marking Area | 110*110mm to 300*300mm |
Mininum Line Width | 0.015mm | Mininum Character | 0.2mm |
Operation System | Win XP / 7 / 8 / 10 (32 bit , 64 bit) | Power Supply | AC110V /220V +10% 50HZ/60HZ |
Operation Environment | Working temperature: 0°-40°, | ||
