Mopa Fiber Laser Marking Machine
  • mopa fiber laser  marking
  • mopa fiber laser  marking
  • mopa fiber laser  marking

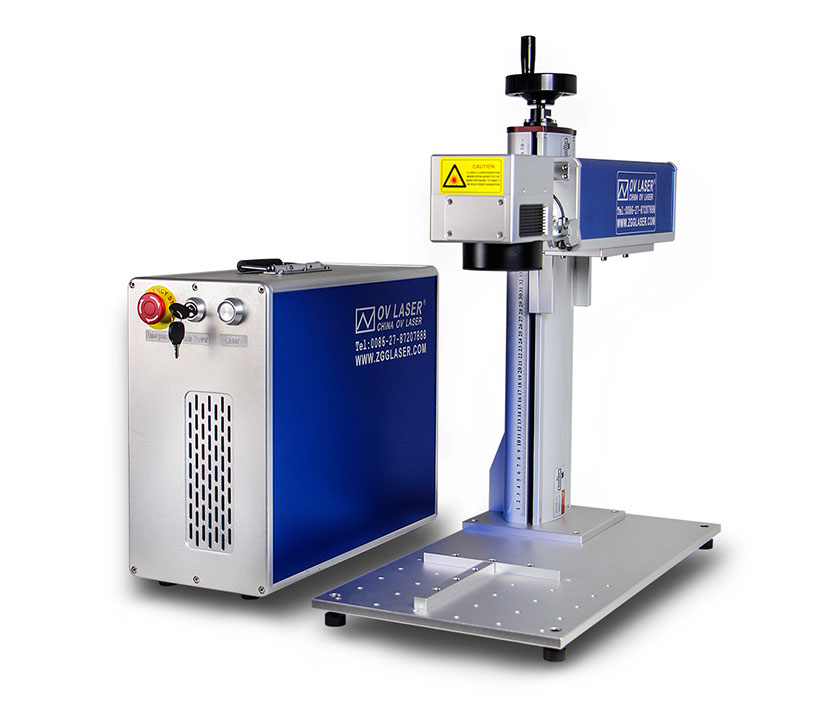

20w Mopa Fiber Laser Marking Machine Color Marking on Stainless Steel

Mopa fiber color laser marking machine can do


High speed metal marking

Engrave with colorful effects

Dark color effects at high speed

Precision metal marking

Colorful palette on stainless steel and aluminum

Jewelry marking engraving

Medical tools engraving

Laptops and cellphones engraving


Share
  • product details
  • video
Features:

Product Hightlights

The fiber laser machines use a technology called Q-switched that allows the laser device  to generate the path light between 1 to 500 kHz. The Master Oscillator Power Amplifier knowing as MOPA .and the machine has a pulse frequency with more amplitude than the fiber, from 1 to 2700 kHz. These enable the MOPA laser to have different engraving results over some plastics and metal materials in comparations of the engraving results of the Q-switched or fiber laser technology. Both the fiber laser and MOPA can do marking on workpiece at high speed . If you want a better finishing on plastic materials and  different colors on stainless steel, titanium or black color on aluminum you can choose MOPA laser. If you just wanna engrave metals at high speed  don't need to engrave colors on metals,  you can choose a fiber laser. the two  machines may look the same but they   are different not only on work effect and technology, they are also very different on price, MOPA laser technology also tends to be expensive than normal Fiber Q-switched lasers.

Specifications

Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Application:Laser Marking

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification: CE, ISO, SGS, FDA

Warranty:3 years

Laser Source:JPT

Marking Area: 50mm*50mm---300mm*300mm

Marking Speed:7000mm/s

Applicable Material: Metal&Non-metal

Field Lens:Singapore Wavelength

Packaging & Delivery

There are 3 layers of package: waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case. Ezcad Software Air Cooling 20w Mopa Fiber Laser Marking Machine for Color Marking on Stainless Steel

Port

Wuhan port or any other China ports

Lead Time :

Quantity(Sets) 1-3     4-5    >5

Est. Time(days) 5    7 To be negotiated

20w Mopa Fiber Laser Marking Machine Color Marking on Stainless Steel

20w Mopa Fiber Laser Marking Machine Color Marking on Stainless Steel

20w Mopa Fiber Laser Marking Machine Color Marking on Stainless Steel
