Flying Laser Engraving Machine
  • laser marking machine
  • laser marking machine
  • laser marking machine

10w/30w/50w Laser Marking Machine Co2 Fly Marker on Pvc Plastic Pipe

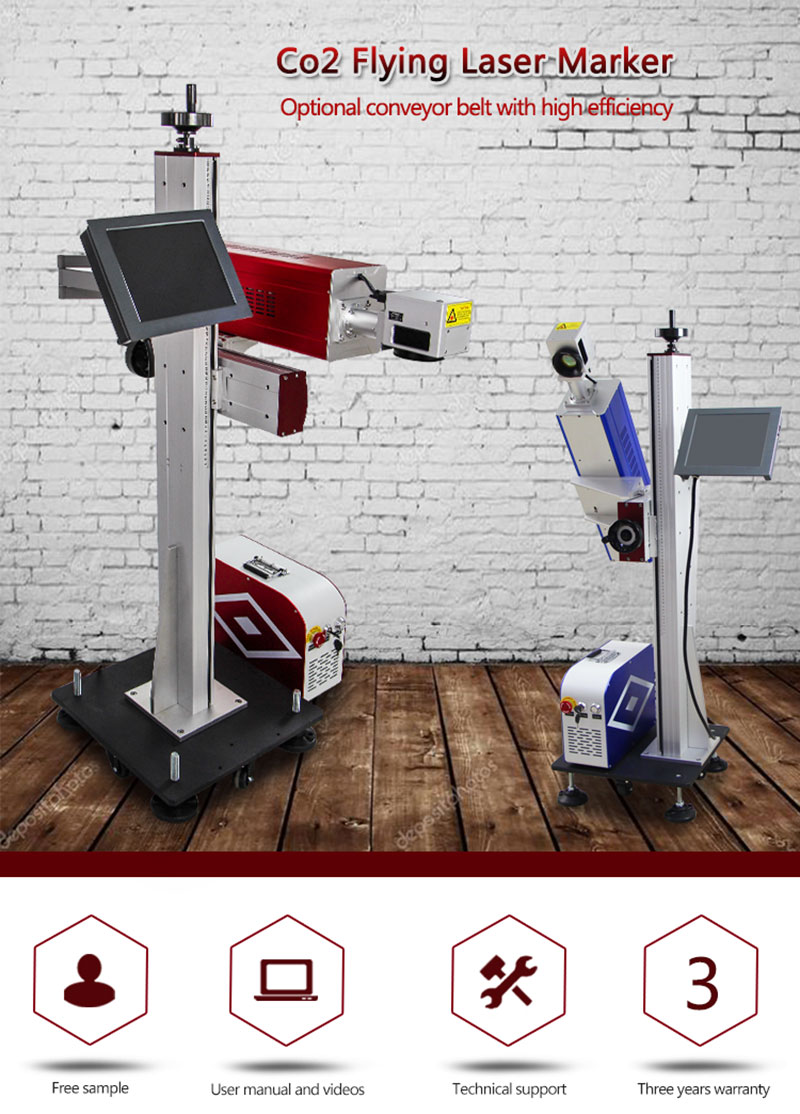

Flying Laser Marker

1. Environmentally friendly: No need water chiller to cool, small size small occupation, can be easily installed in many places.


2. Permanent marking: It won’t fade, run or become less discernable as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.


3. Cost-effective: No maintenance during the 80,000 hours working life. One machine can be used in many different materials & industry. Marking software c/w machine. Minimal part replacement


4. High efficiency and High Precision: Computer operated, the Marking speed is up to 7000mm/s and Minimum line width is up to 0.01mm..


5. Full supporting: Warranty two years. Full operator training. Our engineers providing a solution according to your application. Engineers available service machinery overseas.


6. High quality: CE & ISO & BV & FDA approved, imported core spare parts like German IPG fiber laser.


Share
  • product details
  • video
Features:

Product Hightlights

Free sample,User manual and videos,Technical support,Three years warranty


Specifications

Graphic Format Supported:AI, PLT, DXF, BMP, DST, DWG, LAS, DXP

Application:Laser Marking

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification:CE, ISO,  FDA

Warranty:2 years

Laser Source:Raycus, IPG

Marking Area:110*110mm/145*145mm/200*200mm

Laser Wavelength:1064nm

Marking Speed:8000mm/s

Marking Depth:0.01-5mm(Optional)

Applicable Material:Metal and some non-metal

Power Supply:220V/50HZ

Laser Repetition Frequency:20kHZ - 200kHZ

Field Lens:Singapore Wavelength

Name:10w/30w/50w Laser Marking Machine Co2 Fly Marker on Pvc Plastic Pipe

Supply Ability

300 Set/Sets per Month Co2 Laser Marker on Pvc Pipe

Packaging & Delivery

Packaging Details There are 3 layers of package: waterproof thickening plastic bag; foam to protect from shaking; solid export wooden case.

10w/30w/50w Laser Marking Machine Co2 Fly Marker on Pvc Plastic Pipe

Port

wuhan/ningbo/shanghai/your port

Lead Time :

Quantity(Sets) 1 - 2 2 - 5 6-10 >10

Est. Time(days) 5 7 10 To be negotiated




Power10W/20W/30W/60W
Laser Wavelength1064μm
Marking Area110mm*110mm, optional 70*70mm, 145*145mm, 175*175mm, 200*200mm, 300*300mm
Laser SourceSynard/CRD/DW
Marking Speed0-8000mm/s
Minimum Line Width0.015mm
Minimum Character0.3mm*0.3mm
Repeated Precision±0.003mm
Lifespan of Fiber Laser Source80000 hours
Focus Spot Diameter<0.01mm
 System Operating EnvironmentWINDOWS XP/7/8
 Cooling ModeAir Cooling
Working Temperature0℃-40℃
 Voltage220V/50Hz or 60Hz
Power800W/1200W
