Adjustable  Flying Fiber Laser Marking Machine
  • Fly Fiber Laser Marking Machine
  • Fly Fiber Laser Marking Machine
  • Fly Fiber Laser Marking Machine

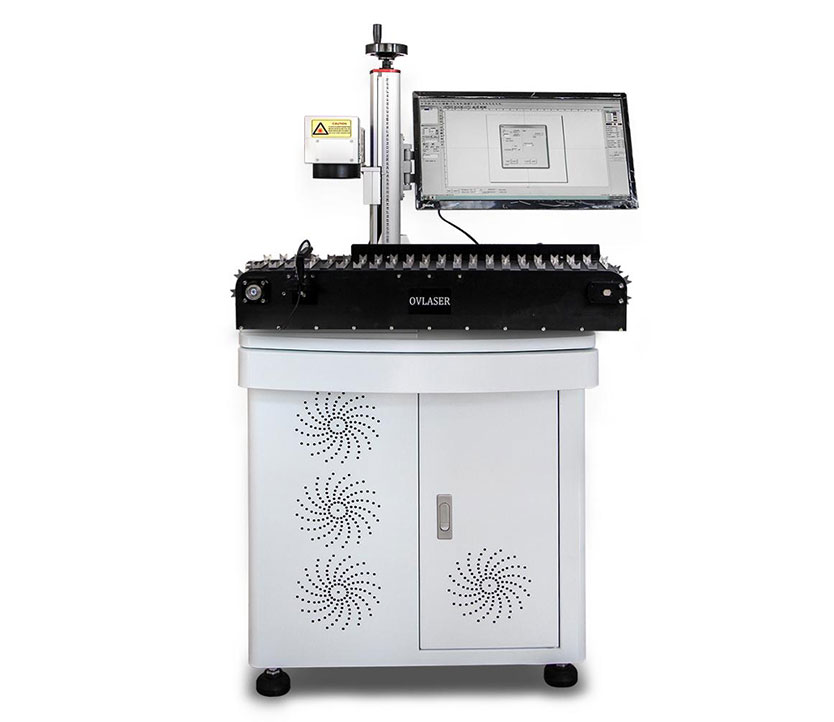

20w 30w Adjustable Flying Fiber Laser Marking Machine With Conveyor Belt For Pen

Features of  Adjustable Flying Fiber Laser Marking Machine:

1.Laser marking head

2.Marking head lifting

3.360 degree rotary display operating floor.Can adjust the angle freely

4.Emergency Stop,Main Power Key Switch,Laser Switch ,PC switch handle

5.Working Table

6.Console and mouse

7.Turn on/off the host's door lock

8.Removable table foot for easy movement

9.Detachable host cabinet The laser source,control card and power supply inside


Share
  • product details
  • video
Features:

Product Hightlights

Portable 20w fiber metal laser marking machine Applicable Industries: 1.Electronic Components Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc. 2.Mechanical Parts Bearings, Gears, Standard Parts, Motor, etc. 3.Instrument Panel Board, Nameplates, Precision equipment, etc. 4.Hardware Tools Knives, Tools, Measuring Tools, Cutting Tools, etc. 5.Automobile Parts Pistons&Rings,Gears,Shafts,Bearings,Clutch,etc. 6.Daily Necessities Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Specifications

Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Application:Laser Marking

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification: CE, ISO, SGS, FDA

Warranty:3 years

Laser Source:IPG, Raycus

Marking Area:50mm*50mm--- 300mm*300mm

Laser Wavelength:1064nm

Marking Speed:7000mm/s

Marking Depth:0.01-4mm

Applicable Material: Metal and some non-metal

Power Supply:220V/50HZ/1-PH or 110v/60HZ/1PH

Field Lens:Singapore Wavelength

20w 30w Adjustable Flying Fiber Laser Marking Machine With Conveyor Belt For Pen

Supply Ability

500 Set/Sets per Month Flying Fiber Laser Marking Machine With Conveyor Belt

Packaging & Delivery

There are 3 layers of package: waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case. 20w 30w Flying Fiber Laser Marking Machine With Conveyor Belt For Pen Sale

Port

Wuhan port or any other China ports

Lead Time :

Quantity(Sets) 1-3  4-5       >5

Est. Time(days) 5 7  To be negotiated




Type

OV LM-30

Power

20W / 30W/ 50W

Laser Wavelength

1064nm

Marking Area

110mm*110mm

Optional Marking Area

70mm*70mm—300mm*300mm

Marking Depth

≤1mm

Marking Speed

7000mm/s

Minimum Line Width

0.015mm

Minimum Character

0.2mm

Repeated Precision

±0.003mm

Controller

(Software--EzCad)

JCZ from China

Life-span of Fiber Laser Module

100,000-200,000 hours

Beam Quality

M<1.6

Focus Spot Diameter

<0.01mm

Power Stability (8h)

<±1.5%rms

System Operation Environment

Windows XP / Windows 7 / Windows 8 / Windows10

Cooling Mode

Air cooling--Built-in

Working Temperature

0℃~40℃

Voltage

220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH

Power Requirement

<500W

Computer Requested

There will be one PC with the machine

Dimension (L*W*H)

800mm*700mm*700mm

Package Size

950mm*720mm*1100mm

Net Weight

95KG

Gross Weight

148KG

Optional

(Not free of charge)

Rotary Device, Moving Table, other customized Automatic Matching System

20w 30w Adjustable Flying Fiber Laser Marking Machine With Conveyor Belt For Pen


20w 30w Adjustable Flying Fiber Laser Marking Machine With Conveyor Belt For Pen

20w 30w Adjustable Flying Fiber Laser Marking Machine With Conveyor Belt For Pen

20w 30w Adjustable Flying Fiber Laser Marking Machine With Conveyor Belt For Pen
