Flying Fiber Laser Marking Machine
  • laser marking
  • laser marking
  • laser marking
  • laser marking
  • laser marking

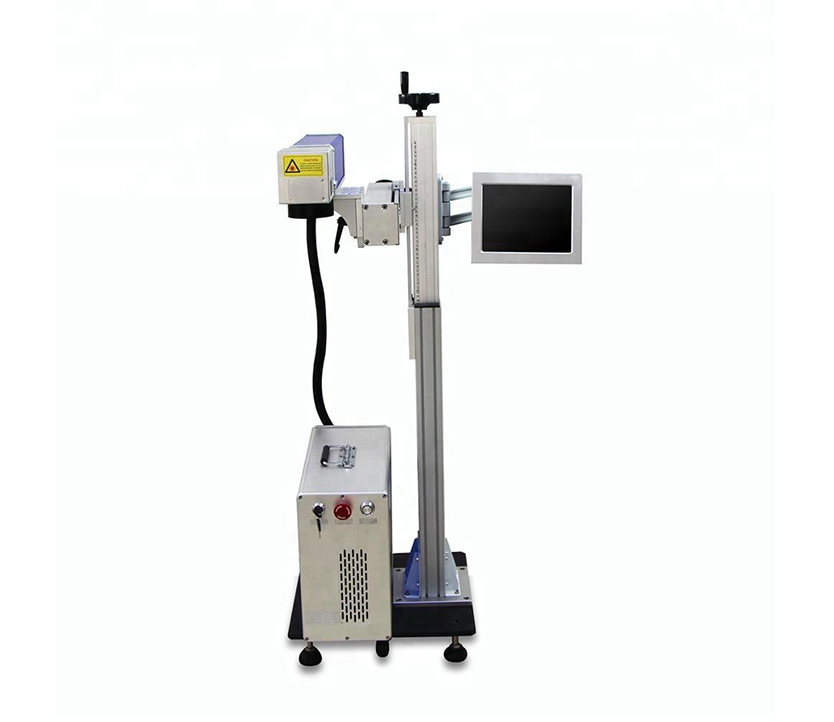

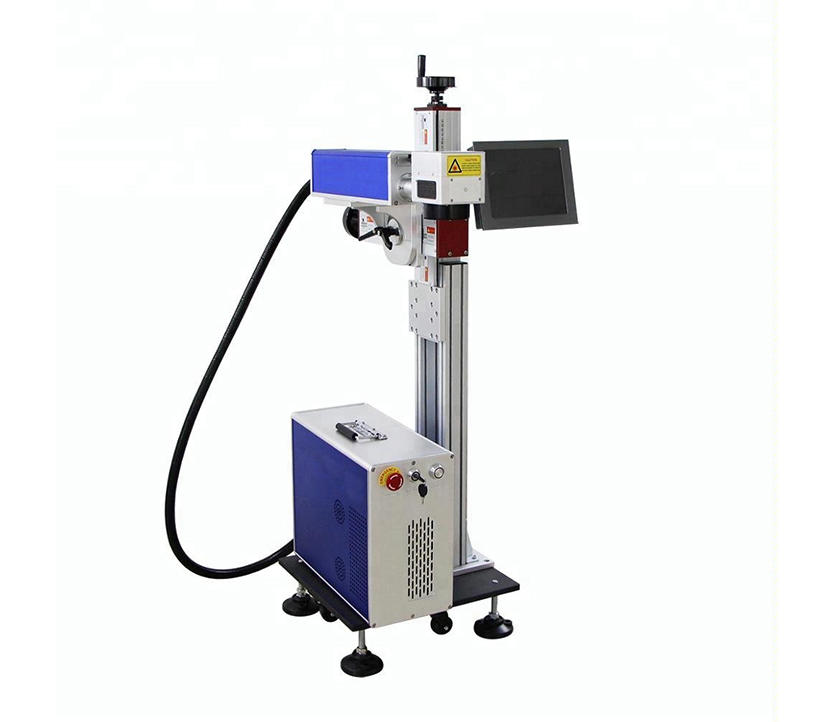

30w Flying Fiber Laser Marking Machine for Metal

Applicable Industries:

Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.

Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

Instrument: Panel Board, Nameplates, Precision equipment, etc.

Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.

Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.


Share
  • product details
  • video
Features:

Product Hightlights

Flying Online Fiber Laser Marking Machine 1.Equipped with  original EZCAD Design and graph will be converted into digital signals by laser marking control card transmitted into galvanometer scanning head 2.Galvanometer scanning head Higher scanning speed and marking accuracy 3.LCD computers that can be moved on demand 4.Portable and mini type,easy carry The handle can adjust the angle of the lens up and down,the horizontal column can adjust the length of the lens before and after ,easy to use 5.Aluminum Worktable Can be equipped with fixed workbench/pipeline 6.Emergency stop,main power key switch ,laser switch 7.Column height can be adjusted freely according to requirements

Specifications

Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Application:Laser Marking

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification: CE, ISO, SGS, FDA

Warranty:3 years

Laser Source:RAYCUS

Marking Area:50mm*50mm-300mm*300mm

Laser Wavelength:1064nm

Marking Speed:8000mm/s

Applicable Material: Metal &Some nonmetals

Power Supply:220V/50HZ/1-PH or 110v/60HZ/1PH

Laser Repetition Frequency: 20kHZ - 200kHZ

Field Lens:Singapore Wavelength

Supply Ability

500 Set/Sets per Month

There are 3 layers of package: waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case.

Port

Wuhan port or any other China port

Lead Time :

Quantity(Sets) 1-3     4-5   >5

Est. Time(days) 5 7  10 To be negotiated



ModelOV SF-30
Wave length of laser 1064nm
Laser repetition frequency20kHz~200kHz
Laser power100W
Marking area50mm*50mm-300mm*300mm
Laser sourceRAYCUS, IPG
Laser headGalvanometer
Field lensSingapore wavelength
Control systemJCZ- Ezcad
Working accuracy0.001mm
Marking speed8000mm/s
Repeated accuracy0.003mm
Cooling waysAir cooling
Power supplyAC220V/50HZ/1.5KVA
Process Material All kinds of metal and part of Non-metal Materials
Support format PLT, BMP, DXF, JPG, TIF, AI etc
Package Wooden case for export

30w Flying Fiber Laser Marking Machine for Metal

30w Flying Fiber Laser Marking Machine for Metal
