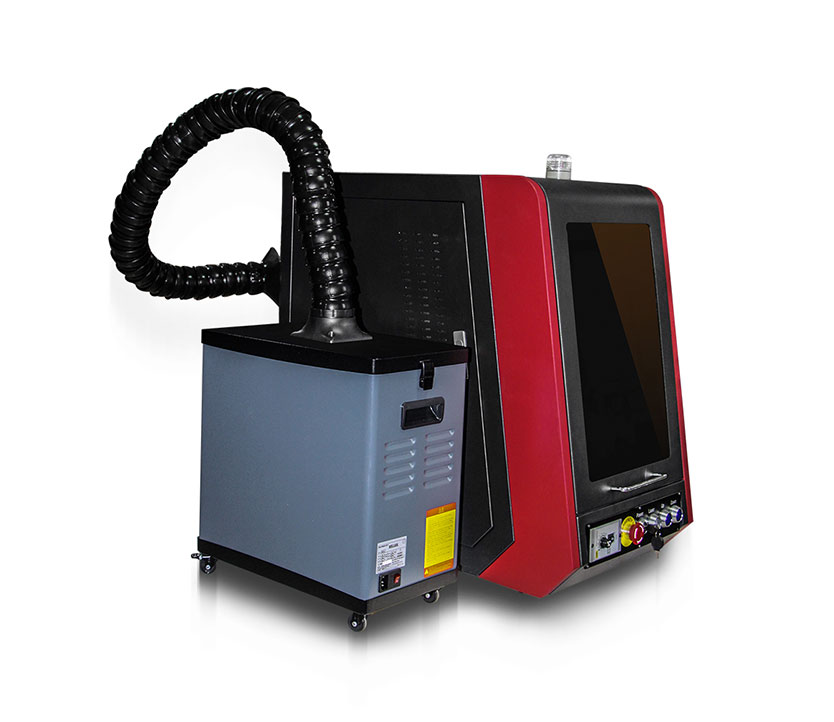

PCB board laser marking machine Logo Making on Metal Strips Small Power Laser Cutter for Jewellery Ornaments 20w 30w fiber laser

Laser Type Working Accuracy Graphic Format Supported

Fiber Laser 0.001mm AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Share
  • product details
  • video
Features:

Product Hightlights

Laser Type Working Accuracy Graphic Format Supported

Fiber Laser 0.001mm AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Specifications

Application:Laser Marking

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification:CE, ISO, SGS, FDA

After-sales Service Provided:Engineers available to service machinery overseas

Laser Source:IPG, Raycus, Mopa

Laser Head:Galvanometer

Marking Speed:7000mm/s

Laser Marking Depth:0.01-1mm

Laser Wavelength:1064nm

Fiber Laser Source Lifespan:100,000-200,000 hours

Marking Area:50mm*50mm--- 300mm*300mm

Applicable Material:Metal and some non-metal

Power Supply:220V/50HZ/1-PH or 110v/60HZ/1PH

Supply Ability

500 Set/Sets per Month Mopa laser printing machine on mobile phone cases

Packaging & Delivery

Packaging Details

plywood box, free of fumigation, good protection, suitable for all transportation method.

Port

Wuhan port or any other China ports

Lead Time :

Quantity(Sets) 1 - 1 2 - 2 >2

Est. Time(days) 5 7 To be negotiated


Product Description

Features:

1,High speed marking,Special laser head for high-speed scanning

2,Long lifetime,More than 100000 hours life for the laser source

3,Safe,Protective cover with anti radiation function,dustproof and eyes protecting

4,High quality laser beam,fine marking.The diameter of focal spot is not cover 20um.

5,Low consumption,About 0.5KW for whole machine

6,Portable,easy to carry


Application Materials:

Fiber laser marking machine can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as

ABS, Nylon, PES, PVC, Makrolon,etc.


Applicable Industries:

Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.

Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

Instrument: Panel Board, Nameplates, Precision equipment, etc.

Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.

Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.



ModelOV SF-20
Wave length of laser1064nm
Laser repetition frequency20kHz~100kHz
Laser power20W/30W/50W
Marking area50mm*50mm-300mm*300mm
Laser sourceRAYCUS, IPG, Mopa
Laser headGalvanometer
Field lensSingapore wavelength
Control systemJCZ- Ezcad
Working accuracy0.001mm
Marking speed7000mm/s
Repeated accuracy0.003mm
Cooling waysAir cooling
Power supply220V/50HZ/1-PH or 110v/60HZ/1PH
Process MaterialAll kinds of metal and part of Non-metal Materials
Support formatPLT, BMP, DXF, JPG, TIF, AI etc
PackageWooden case for export
