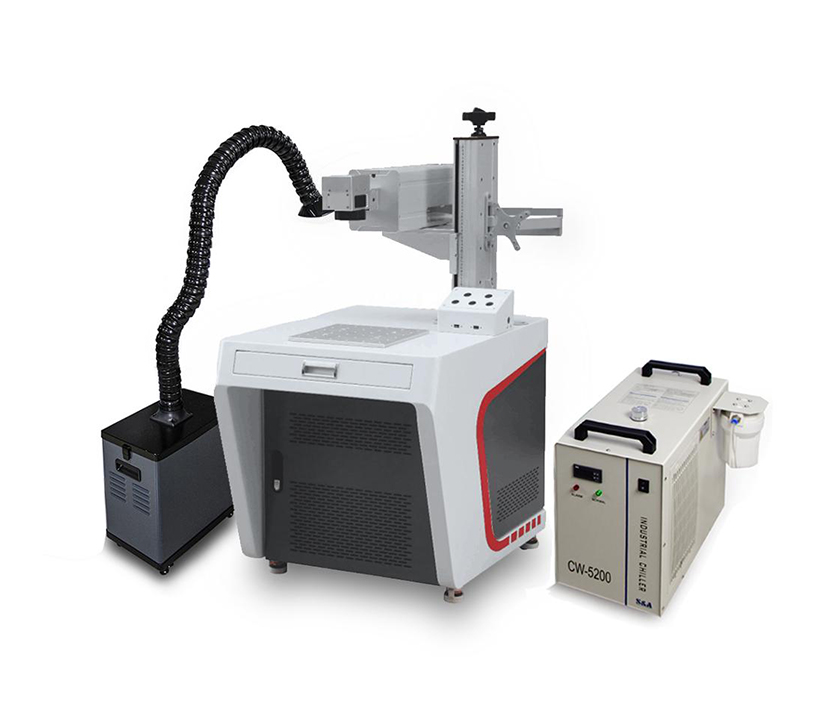

Table Type UV 3W 5W Laser Marking Machine for PVC PP PET Plastic

UV laser marking and engraving is efficient, stable and reliable. uv laser graweruje without heating the surface, is ideal for cutting and marking very sensitive materials, such as - causes no thermal deformation. has a very high speed labelling. provides the high quality laser beam and precision engraving. the minimum laser beam focus is 15um, suitable for micro marking.

Share
  • product details
  • video
Features:

Product Hightlights

Solutions For Different Industry- fiber laser marking machine Electrical Engineering and Electrical part and component Mobile (Cover,battery,keyboard, I Phone Case) Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft Building materials,PVC pipe Car motor car spare part ,Insturment and meters and cutting tool Plastic case,aviation and aerospace, Military product,hardware fitting and accessory,sanitary appliance Food and beverage ,Medicine package and medical instrument,solar PV industry

Specifications

Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Application:Laser Marking

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification: CE, ISO, SGS, FDA

Warranty:2 years

Laser Source:Chinese Brand

Marking Area:50*50mm/100*100mm/200*200mm/300*300mm

Laser Wavelength:1064nm

Marking Speed:≤7000mm/s

Marking Depth: ≤0.2 mm(Depending materials)

Applicable Material: Non-metal

Power Supply:220V/50Hz/2kVA

Laser Repetition Frequency:quency:20-100khz

Field Lens:Singapore Wavelength

Alumium Copper Optical Fiber Laser Marking Machine ≤0.2 mm Depending materials

Supply Ability

500 Set/Sets per Month

Packaging & Delivery

There are 3 layers of package: waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case. UV Ultraviolet Fiber Laser Marker Desktop 3W/5W/10W Ultraviolet Fiber Laser Marking Machine For Phone Case

Port

Wuhan port or any other China ports

Lead Time :

Quantity(Sets) 1-3  4-5       >5

Est. Time(days) 5 7  To be negotiated



 UV Laser Marking Machine



Parameter

Unit

Description

   Wavelength

354.7

nm



Average Output Power

2.0~~10.0

W

@30kHz

Pulse Width

<16

ns

@30kHz

Pulse Repetition Rate

10-100

kHz



Spatial Mode

TEMoo





M2

<1.2





Beam Diameter

2.0+/-0.2

mm

1m Measured at window

Beam Full Divergence Angle

<0.5

mrad



Beam Circularity

>0.9





Pulse-to-Pulse Stability

<3

%

RMS

Average Power Stability

<5

%

RMS/8hr

Beam-Pointing Drift

<25

μrad/℃



Polarization Ratio

>100:1





Polarization Orientation

Horizontal





Operating Temp. & RH

10 to 35
<80


%



Storage Temp. & RH

-20 to 65
<90


%



Electricity Requirement

Power Consumption

100-240
50/60
<800

VAC
Hz
W

Single phase

Warranty

12

months



Table Type UV 3W 5W Laser Marking Machine for PVC PP PET Plastic

Table Type UV 3W 5W Laser Marking Machine for PVC PP PET Plastic
