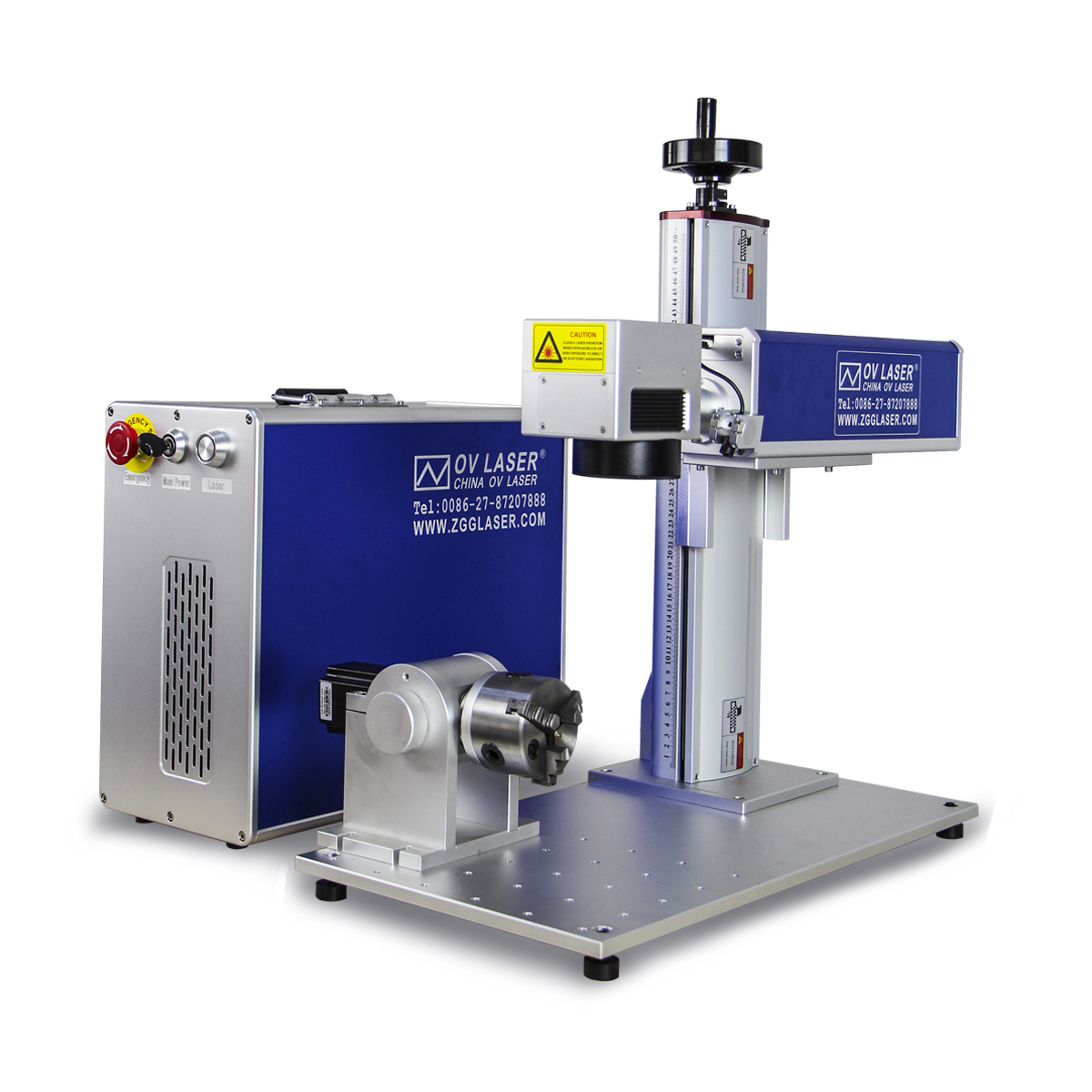

20w 30w 50w QR code printing laser marking machine for metal plastic ABS seal PP fiber laser marking machine

Applicable Industries:

Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.

Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

Instrument: Panel Board, Nameplates, Precision equipment, etc.

Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.

Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.


Share
  • product details
  • video
Features:

Product Hightlights

Fiber Laser Marking Machine is consist of 1.Laser Source   Raycys/IPG/JPT/MAX,for your choice 2. Control Card Beijing JCZ brand EZCAD software 3.Galvanometer High Speed,high precision scanlab or sino-galvo brand you can choose 4. Power Supply Taiwan Meanwell 5.Field Lens Singapore Wavelength 6. Double Red Lights posit the exact marking area for workpiece 7. Lifting Pillar By hand or electric two options 8.Button One for machine main power,one for emergency button,one for laser power

Specifications

Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Application:Laser Marking

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification: CE, ISO, FDA

Warranty:3 years

Laser Source:Raycus

Marking Area: 50mm*50mm-300mm*300mm

Marking Speed:7000mm/s

Applicable Material: Metal&Non-metal

Field Lens:Singapore Wavelength

Packaging & Delivery

Package have 3 layers : 1.Inner package: Waterproof thickening plastic bag 2.Middle package: Foam to protect from shaking 3.Outside package: Standard solid export wooden case

Port

Wuhan port or any other China ports

Lead Time :

Quantity(Sets) 1-1     2-5     6-10   >10

Est. Time(days) 5  10  15    To be negotiated



Product Parameters
Model
OV SF-50
Laser source
Raycus
Laser Type
Fiber laser
Positioning Way
Red light
Laser power
50W
Laser Module Life
100000 hours
Weave length
1064 nm
Cooling Style
Air cooling
Marking area
110mm*110mm--300mm*300mm
Total power
≤500W
Marking speed
7000-12000mm/s
Operating Voltage
220v /110v 50hz
Marking depth
0.01-2mm
Supported Windows
Windows XP,7,8,10
Repetition Precison
0.001mm
Certificate
ISO, CE, FDA
Minimum Character
0.2 mm
Control software
EZCAD 2.14.9
Minimum Line Width
0.01mm
Supported Format
PLT, DXF, DST, AI, SDT, BMP, etc.
Packaging Dimension
77*43*83cm
Gross weight
62kg
