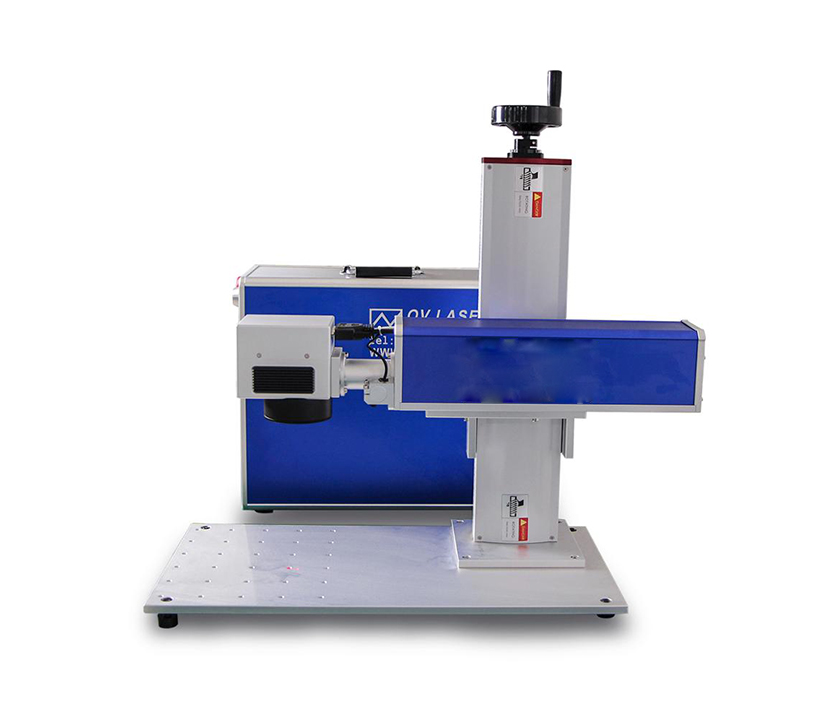

Deep engraving 30w 50w portable fiber laser engraving machine jewelry engraving machine

Features of fiber laser engraving machine:

1. High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect.

2. Superior Laser Beam: The definition is 1 micron,10 times as that of traditional products.

3. No Consumables: One Fiber marker can work for more than 10 years without any consumables.

4.High Speed: 7000mm / second, is 3 to 5 times above that of traditional products.

5. The fiber laser beam comes out from the IPG/Raycus fiber device directly,no need to adjust the laser optical path.

6.Low consumption: <500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.

7.EzCad Software, USB interface, swift and stable transmission, easy software operation, strong functions.

8.High-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid.

9. Long lifespan of IPG/Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs)

10. Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc.

11. Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.

12. Deep Marking: Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect.

Inquire Now Next Product

product details
video

Features:

Product Hightlights

Applicable Industries: Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc. Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc. Instrument: Panel Board, Nameplates, Precision equipment, etc. Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc. Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Specifications

Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Application:Laser Marking

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification:CE, ISO, SGS, FDA

Warranty:3 years

Laser Source:IPG, RAYCUS

Marking Area:50mm*50mm-300mm*300mm

Laser Wavelength:1064nm

Marking Speed:7000mm/s

Marking Depth: <=1mm

Applicable Material: Metal

Power Supply:220V/50HZ/1-PH or 110v/60HZ/1PH

Laser Repetition Frequency:20-100khz

Field Lens:Singapore Wavelength

Deep engraving 30w 50w portable fiber laser marking machine jewelry engraving machine

Supply Ability

500 Set/Sets per Month High Speed Flying CO2 Laser Marking Coding Equipment

Packaging & Delivery

There are 3 layers of package: waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case. Deep engraving 30w 50w portable fiber laser marking machine jewelry engraving machine

Port

Wuhan port or any other China ports

Lead Time :

Quantity(Sets) 1-3 4-5 >5

Est. Time(days) 5 8 To be negotiated

Model	OV SF-20
Wave length of laser	1064nm
Laser repetition frequency	20kHz~100kHz
Laser power	20W/30W/50W
Marking area	50mm50mm-300mm300mm
Laser source	RAYCUS, IPG
Laser head	Galvanometer
Field length	Singapore wavelength
Control system	JCZ- Ezcad
Working accuracy	0.001mm
Marking speed	7000mm/s
Repeated accuracy	0.003mm
Cooling ways	Air cooling
Power supply	220V/50HZ/1-PH or 110v/60HZ/1PH
Process Material	All kinds of metal and part of Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Wooden case for export
